Heart Diagram Generator
Read a labeled heart diagram, follow blood through the four chambers, and build an educational illustration with a clear view and label hierarchy.
SEE ACADRAW IN ACTION
Science drawing, from idea to editable figure
Create a science illustration with AI. Refine drawings, build editable diagrams, and convert images to SVG.
Demos play as you scroll into view. Choose a feature to explore.
Trusted by students & researchers from 480+ universities
A global community spanning 60+ countries and regions, from QS top-ranked universities to leading research institutes
University logos belong to their respective institutions and are shown solely to illustrate our user community. They do not imply any partnership or endorsement.
Tool overview
Explore the use cases, workflow, and key things to know.
Four chambers
Identify the atria and ventricles before adding valves and vessels.
Two circuits
Separate the pulmonary route to the lungs from the systemic route to the body.
Editable draft
Use the prompt to begin an AI illustration, then verify every label in the editor.

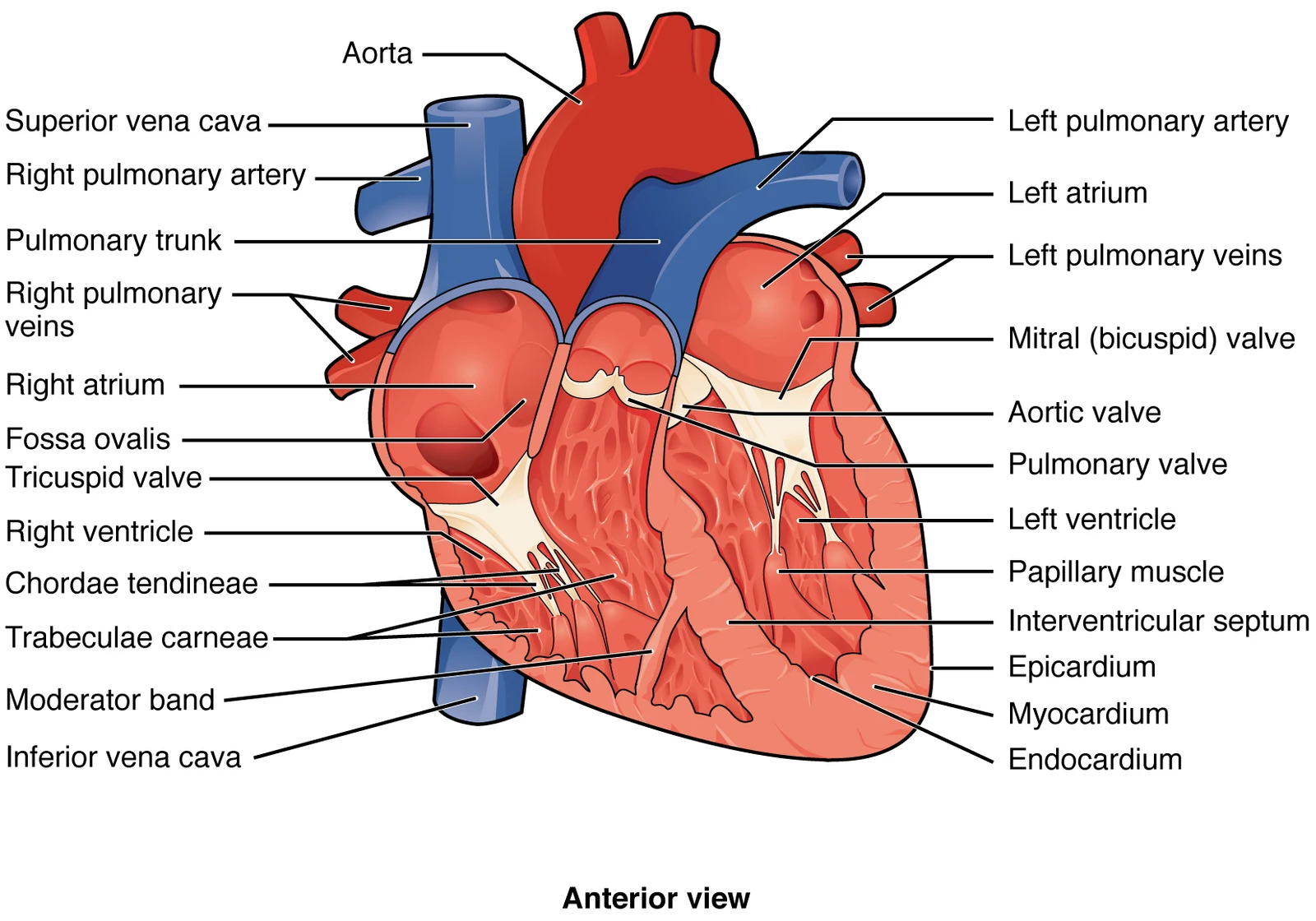

Labeled reference
Find the four chambers before tracing the vessels
This anterior cutaway opens the heart to reveal its internal structures. Anatomical right appears on your left. The diagram shows structure; use the separate blood-flow sequence below to understand movement.
Heart diagram labels and their functions
Use this label key alongside the reference. Soft tissues or functions described in the table may require an additional view or layer.
| Structure | Where to find it | What it does |
|---|---|---|
| Right atrium | Upper chamber on the viewer’s left | Receives systemic venous blood through the venae cavae; also receives blood from the coronary sinus. |
| Right ventricle | Below the right atrium | Pumps blood through the pulmonary valve into the pulmonary trunk and arteries. |
| Left atrium | Upper chamber on the viewer’s right | Receives oxygen-rich blood returning from the lungs through pulmonary veins. |
| Left ventricle | Thick-walled lower chamber on the viewer’s right | Pumps blood through the aortic valve into the systemic circulation. |
| Tricuspid valve | Between right atrium and right ventricle | Limits backward flow into the right atrium during ventricular contraction. |
| Mitral (bicuspid) valve | Between left atrium and left ventricle | Limits backward flow into the left atrium during ventricular contraction. |
| Pulmonary and aortic valves | At the ventricular outflow openings | Semilunar valves that limit return from the great arteries into the ventricles. |
| Interventricular septum | Wall between the ventricles | Separates the right and left ventricular chambers. |
| Chordae tendineae and papillary muscles | Inside the ventricles, attached to atrioventricular valves | Help prevent valve prolapse; they do not actively open the valves. |
Anatomical relationships: OpenStax: Heart anatomy. On small screens, scroll the table horizontally.
Blood flow through the heart, in order
Follow the destination of each arrow rather than memorizing red and blue. Arteries carry blood away from the heart; veins carry blood toward it.
01
Body → right heart
Body tissues → superior and inferior venae cavae → right atrium → tricuspid valve → right ventricle. Coronary venous return also enters the right atrium through the coronary sinus.
02
Right heart → lungs
Right ventricle → pulmonary valve → pulmonary trunk → pulmonary arteries → lung capillaries. Gas exchange adds oxygen and removes carbon dioxide.
03
Lungs → left heart → body
Pulmonary veins → left atrium → mitral valve → left ventricle → aortic valve → aorta → systemic circulation. The two sides work as one continuous circuit.
Common heart diagram mistakes
Flipping anatomical left and right
Use the person’s left and right, not the viewer’s. Label the view before adding leader lines.
Calling every artery oxygen-rich
Pulmonary arteries carry oxygen-poor blood to the lungs. Pulmonary veins carry oxygen-rich blood back to the heart.
Showing all valves open together
Valve positions depend on pressure differences and the phase of the cardiac cycle. A static anatomy diagram does not represent every phase at once.
Create your own heart diagram diagram
Start with the prefilled prompt in the generator above. Reading the reference is free; creating a new AI draft requires an account and available credits. See current pricing.
Choose Science Drawing for an illustrated draft, or Editable Diagram when you need separate shapes and text labels. Check the anatomy in either mode before using the result.
- 1
Choose a view and audience
Start with an anterior cutaway for chambers and valves. Use an external anterior or posterior view when the lesson is about surface vessels.
- 2
Generate a focused draft
Keep chambers, valves, and vessels in separate label groups. Request a separate flow panel rather than crowding the anatomy with arrows.
- 3
Check, edit, and export
Verify anatomical sides, valve positions and flow direction against the references. Adjust labels in the editor before exporting for your lesson.
A prompt you can adapt
Create a clean educational anterior cutaway diagram of the human heart on a white background. Show anatomical right on the viewer’s left. Label right atrium, right ventricle, left atrium, left ventricle, tricuspid valve, mitral valve, pulmonary valve, aortic valve, venae cavae, pulmonary trunk, pulmonary veins, aorta and interventricular septum. Use spaced leader lines. Include a separate simplified blood-flow pathway with clearly directed arrows, and a red/blue oxygenation legend. Avoid disease findings. Keep labels editable for manual review.
Use this prompt in the generatorHeart Diagram FAQ
What are the four chambers of the heart?
The right atrium, right ventricle, left atrium and left ventricle. Atria receive blood; ventricles pump it out of the heart.
Why is the left side on the right of the image?
In an anterior view you face the person. Their left is your right. Anatomical names always refer to the person being shown.
What is the difference between a labeled and blank heart diagram?
A labeled diagram is a reference. A blank diagram removes names for practice. To make a worksheet, hide or remove labels in your own editable draft and keep a separate answer key.
Does blue blood mean blood is actually blue?
No. Human blood is red; oxygen-poor blood is darker red. Blue is a teaching convention that must be explained in a legend.
Can I use this heart diagram for a class?
The reference illustration is from OpenStax under CC BY 4.0. Follow its attribution requirements. Check your course requirements and verify any AI-generated draft before sharing.
Is the AI heart diagram generator free?
You can read this reference without an account. Generating a new illustration requires signing in and available credits; current allowances and prices are shown on the pricing page.
Sources and editorial notes
- OpenStax, Anatomy and Physiology: Heart anatomy — primary anatomy reference and illustration source.
- National Heart, Lung, and Blood Institute: How the Heart Works — additional educational context.
Prepared by the AcaDraw product team. Source and label check: . Independent medical review has not been completed. This material is for education; AI drafts need review against reliable anatomy references before use and are not for diagnosis or treatment.
