Trace the nephron diagram in order
Follow the capsule, proximal tubule, loop, distal tubule and collecting duct.
Keep blood and filtrate separate
Glomerular capillaries carry blood; the capsular space and tubular lumen carry filtrate.
Name each exchange direction
Filtration enters the capsule, reabsorption returns substances to blood, and secretion adds substances to tubular fluid.
Labeled reference

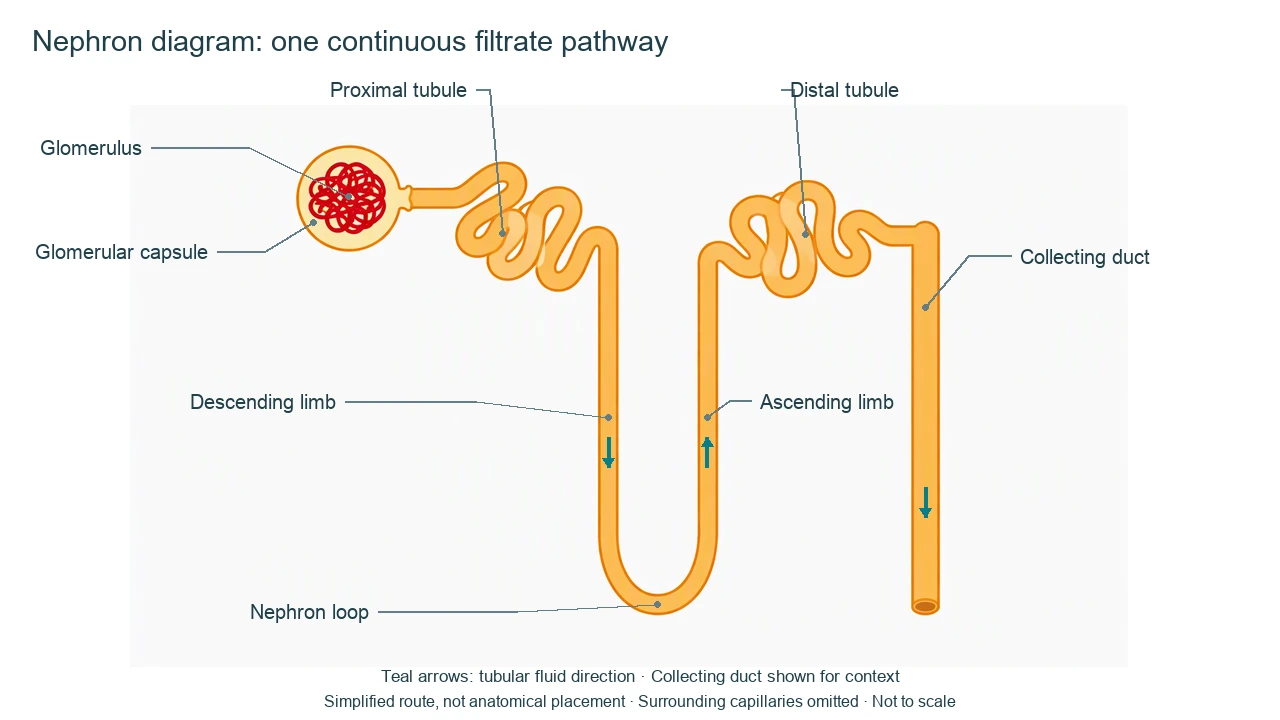

Labeled nephron diagram: follow the filtrate pathway
This nephron diagram isolates one renal corpuscle and a simplified tubular route. The capsule surrounds a glomerular capillary tuft; the tubular pathway continues through the proximal segment, loop and distal segment to a collecting duct. The duct is shown for drainage context and receives fluid from multiple nephrons in the kidney. Blood vessels outside the glomerulus and detailed transporters are omitted.
Nephron diagram labels and pathway checks
Use this label key to plan your diagram. Soft tissues or functions described in the table may require an additional view or layer.
| Structure | Place in the route | Role or drawing check |
|---|---|---|
| Glomerulus | Capillary tuft within the renal corpuscle | Blood is filtered across a barrier into capsular space; whole blood does not normally enter the tubule. |
| Glomerular capsule | Cup surrounding the glomerulus | Also called Bowman’s capsule. Receives filtrate and is continuous with the proximal tubular lumen. |
| Proximal convoluted tubule | Coiled segment after the capsule | Major site of reabsorption, with secretion of selected substances; the illustration does not quantify transport. |
| Descending limb | Downward part of the nephron loop | The thin descending segment is relatively water permeable; a broad loop drawing omits segment-specific detail. |
| Ascending limb | Return part of the loop | Reabsorbs salts and is relatively impermeable to water; thin and thick portions differ. |
| Distal convoluted tubule | Coiled segment after the ascending limb | Participates in regulated electrolyte handling. Its proximity to the corpuscle is simplified here. |
| Collecting duct | Downstream of the distal segment | Receives fluid from multiple nephrons and contributes to final urine composition. It is shown alongside, rather than defined as part of the nephron proper. |
Anatomical relationships: OpenStax: Microscopic Anatomy of the Kidney. On small screens, scroll the table horizontally.
Three processes to distinguish in a nephron diagram
The same nephron diagram can show a fluid route or transport across a wall. Give these arrows different meanings and define every direction.
01
Filtration: blood to capsular space
Water and small solutes pass across the filtration barrier. Blood cells and most plasma proteins normally remain in the circulation.
02
Reabsorption: tubular fluid toward blood
Selected water and solutes move from the lumen through surrounding tissue back to the circulation. Arrows leaving the tubule require a blood-side destination.
03
Secretion: blood side toward the lumen
Selected substances enter tubular fluid from the surrounding circulation. Secretion is not the same event as glomerular filtration.
Common nephron diagram mistakes
Connecting blood straight into the proximal tubule
The glomerular barrier separates blood from capsular filtrate. The red tuft is not the start of one open pipe.
Reversing the two loop limbs
Trace the continuous tube to identify descending and ascending limbs before adding transport arrows.
Calling every arrow filtration
Use filtration at the corpuscle, reabsorption toward blood and secretion toward tubular fluid.
Create your own nephron diagram
Start with the prefilled prompt in the generator above. Reading the reference is free; creating a new AI draft requires an account and available credits. See current pricing.
Choose Science Drawing for an illustrated draft, or Editable Diagram when you need separate shapes and text labels. Check the anatomy in either mode before using the result.
- 1
Set the teaching goal
Choose a nephron diagram for label practice, filtrate order or a transport explanation.
- 2
Draw one continuous route
Keep the proximal segment, loop and distal segment connected without shortcuts or blind branches.
- 3
Audit arrows and scope
Use a key for fluid and exchange arrows; specify omitted vessels and simplified cortical/medullary placement.
A prompt you can adapt
Create a labeled nephron diagram with one continuous pathway: glomerular capsule, proximal convoluted tubule, descending loop limb, hairpin, ascending limb, distal convoluted tubule, then a separate collecting duct. Put the glomerular capillary tuft inside the capsule and keep blood separate from the tubular lumen. Show filtrate-direction arrows along the lumen only. Omit transport arrows and surrounding vessels in this overview. Note that the collecting duct receives multiple nephrons and is shown for context. White background, readable labels, simplified and not to scale.
Use this prompt in the generatorNephron FAQ
What are the main parts of a nephron diagram?
A nephron diagram usually includes the renal corpuscle, proximal tubule, nephron loop and distal tubule. A collecting duct is often added to show the downstream route.
What is the correct filtrate pathway?
Capsular space → proximal tubule → descending loop limb → ascending limb → distal tubule → collecting duct. The fluid is modified throughout the route.
Is the glomerulus the same as Bowman’s capsule?
No. The glomerulus is the capillary tuft. The glomerular or Bowman’s capsule surrounds it; together they form the renal corpuscle.
What is the difference between reabsorption and secretion?
Reabsorption moves substances from tubular fluid toward blood. Secretion moves selected substances from the blood side into tubular fluid.
Is the collecting duct part of one nephron?
The collecting system receives fluid from multiple nephrons and is usually distinguished from the nephron proper. Introductory diagrams show it alongside the nephron to complete the fluid route.
Does every nephron have the same loop length?
No. Cortical and juxtamedullary nephrons differ in loop extent. This simplified nephron diagram is a pathway model rather than a measured placement within cortex and medulla.
Can I create an editable nephron diagram?
Yes. Describe the route and detail level, then choose Editable Diagram for shapes and labels or Science Drawing for an illustrated draft. Review the result before use; generation requires an account and credits.
